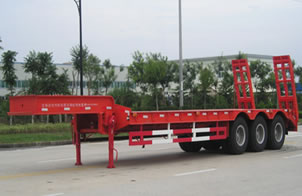

Low Bed Semi Trailer

Description of Low Bed Semi Trailer:
This low bed trailer is a kind of trailer that mainly used to transport various heavy trucks including tow tractors, motor bused and special vehicles, railway vehicles, mining machines, forestry machineries, agricultural machineries including excavators, bulldozers, loaders, pavers, and cranes, and many other heavy goods. The lower the center of gravity, the better its stability and safety and the stronger its capacity of transporting ultrahigh goods and going through barriers at the top of its head.
Its main components include chassis, axle, tyre, suspension system, steel rim, and electrical system.
We can provide triaxial and biaxial low bed trailers for our clients.

Performance Features of Low Bed Semi Trailer:
1. The structures of our low bed semi trailers include flatbed type, concave beam type, and tyre-exposed structure. The longitudinal beam is designed with straightness type or goose-neck type. The vehicle frame is of stepped structure, and the section of longitudinal beam is H-shaped, which features high rigidity and intensity.
2. The loading surface of the chassis is very low, thus ensuring the stability of the transportation. So it is suitable for transporting various engineering machineries, large-scale equipment, steel products, and more.
3. This vehicle adopts triaxial balanced type, biaxial balanced type or rigidity suspension frame. And there is mass balance block between the front and rear steel-plate springs, which can enable the front and rear springs to have equal deflection changes and the front and rear to receive force evenly distributed.
4. This low bed semi trailer is applicable to various machineries, large-scale goods, highway construction equipment, big tanks, power station equipment, and many other steel products.
5. The whole vehicle uses advanced CAD (computer aided design) software, and the loading surface of the chassis can be specially designed and manufactured in accordance with requirements of our clients in order to better satisfy the transportation of various special goods.

Operation of Low Bed Semi Trailer:
1. Enough attention should be attached to the temperature of the axles as well as the wheel hubs, and the fastening pieces like steel-plate springs and wheels should be fastened about per 40km. After three times of fastening these pieces, this vehicle can be used normally.
2. Users should also pay much attention to checking whether the brake emits heat or abnormal smell during the running of the trailer, as well as whether there is any excursion existed during the running of trailer. If there is any unusual phenomenon, users should stop the trailer immediately so as to examine and mend it.
3. Users should also regularly check whether tyres, brakes, axles, and electric system are in good condition.
4. This low bed semi trailer should adopt container transport, bulk goods, and RORO.

Parameters of Low Bed Semi Trailer:

Note: All weight and dimensions mentioned above are approximate, so changes are available depending on the selected prime movers and specific needs of our clients.

Low Bed Trailer for Sale

As a professional manufacturer of low bed semi trailer in China, LANTYPC Purpose Vehicle can also provide many special vehicles for you, such as container flatbed semi trailer, container skeletal semi trailer, tipping semi trailer, van semi trailer, side wall semi trailer,fuel tanker semi trailer, bulk cement tanker semi trailer, bitumen tanker semi trailer, combination vacuum jetter truck, vacuum suction truck, water jetting truck, and more. All of our products have obtained ISO9001 and CCC certification. With reliable quality and competitive price, our products have been quite popular among clients in many countries like Saudi Arabia, UAE(United Arab Emirates), Tanzania, Kenya, Australia, New Zealand, Belgium, Bosnia and Herzegovina, Brazil, Cuba, Morocco, Algeria and such. If you need low bed trailer, please don't hesitate to contact us.
