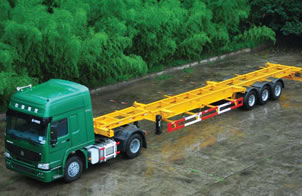

Container Skeletal Semi Trailer

Description of Container Skeletal Semi Trailer:
This container skeletal trailer is made by welding the longitudinal beam, cross beam, and the front and back beam. The main components of this container skeletal semi trailer include chassis, axles, tyres, suspension system, steel rims, and electrical system.
The skeletal container semi trailer possesses a light weight, which can help to reduce the oil consumption and many other costs during the transportation process.
The middle locking device part of the container is fitted with the integral type long cross beam so that the loading capacity of the locking device can be enhanced.
Its longitudinal beam is made of high-quality steel plate which has been made into H-shape after submerged arc wielding treatment; the cross beam is also made of high-quality steel plate that has been pressed into groove type; and the front and back beams are of welded rectangle section.

The difference between the flatbed and skeletal semi trailer lies in that the flatbed one is designed with frames and floor with decorative patterns. And this kind of container skeletal semi trailer has utilized the chassis which has been treated by shot blasting process and is assembled and welded on the special positioning stand. As a result, this trailer has a rational structure, high strength, and a beautiful appearance. There is also a tightening device on the chassis, thus enabling the vehicle to load containers of 40feet and 20 feet. The fixed-type structure has been used in the four container tightening devices in the front and back part, and the middle container tightening device is hideable. When loading containers, the middle container tightening device can be lowered below the loading surface. Mechanical loading device can be used to support the front loading part of the trailer when the towing device is disconnected with the trailer.
We can provide triaxial as well as biaxial container skeletal trailers for our clients around the world.

Operation of Container Skeletal Semi Trailer:
1. Attention should be paid to the temperature of bearings and wheel hubs, as well as whether the fastening pieces like leaf springs and wheels are still screwed down. You'd better fasten them about per 40km, and after three times of fastening, the trailer can be put into normal use.
2. Users should check whether the brake emits heat or abnormal smell, as well as whether there is any excursion existing in the trailer. If there is any abnormal phenomenon, users should stop the device to examine and then repair.
3. As for the maintenance, users should regularly check the tyres, brakes, axles, and electrical system.
4. For the packaging and transportation, this device adopts container transportation, bulk cargoes, and RORO.

Parameters of Container Skeletal Semi Trailer:

Container Skeletal Trailer for Sale

LANTYPC Purpose Vehicle is a professional manufacturer of container skeletal semi trailer in China. In addition to container skeletal semi trailer, we also have many other kinds of special vehicles for you, including low bed semi trailer, container flatbed semi trailer, tipping semi trailer, van semi trailer, side wall semi trailer,fuel tanker semi trailer, bulk cement tanker semi trailer, bitumen tanker semi trailer, combination vacuum jetter truck, vacuum suction truck, water jetting truck, and more. With ISO9001 and CCC certification, our products have been well received around the world, such as Saudi Arabia, UAE(United Arab Emirates), Tanzania, Kenya, Australia, New Zealand, Belgium, Bosnia and Herzegovina, Brazil, Cuba, Morocco, Algeria, etc. If you want container skeletal trailer, please contact us freely.
