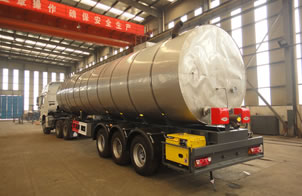

Bitumen Tanker Semi Trailer

Description of Bitumen Tanker Semi Trailer:
This bitumen tanker trailer, also called asphalt tanker trailer, is a kind of semi trailer mainly used to transport bitumen, emulsified bitumen, modified asphalt, PMB solution, heavy fuel oil, and many other liquid materials. Its design standards are in compliance with the GB 18564-2001 and we also abide by the TIR in producing the semi trailer.
It is mainly made up of chassis, tank, heating system, braking system, and electrical system.
We can provide triaxial and biaxial bitumen tanker semi trailers for you.

Features of Bitumen Tanker Semi Trailer:
1. With a high-quality heat insulation cover, the body tank is fitted with flue heating pipe with a diesel burner, which can be used to heat the bitumen or asphalt.
2. The adoption of reinforced mudsill enables the semi trailer to be more suitable for rough road.
3. This asphalt tanker trailer is equipped with asphalt overflow pipes, anti-aging nitrogen filling valve, thermometer, volumeter, and high-speed unloading valve for asphalt output, coupler, and many other useful devices.

Operation of Bitumen Tanker Semi Trailer:
1. Enough attention should be attached to the temperature of the axles as well as the wheel hubs, and the fastening pieces like leaf springs and wheels should be fastened about per 40km. After three times of fastening these pieces, this vehicle can be used normally.
2. Users should also pay much attention to examining whether the brake emits heat or abnormal smell during the running of the trailer, as well as whether there is any excursion existing during the running of trailer. If there is any unusual phenomenon, users should stop the trailer immediately to examine and mend it.
3. Users should regularly examine whether tyres, brakes, axles, and electric system are in good condition.
4. This asphalt tanker trailer should adopt container transport, bulk goods, and RORO.

Parameters of Bitumen Tanker Semi Trailer:
Trailer dimensions: 12000mm×2500mm×3700mm
Tanker dimension: 11800×2200mm×2200mm
Curb weight: 10000KG
Working temperature (℃): 250
Temperature lapse rate (℃/24h): Feeding temperature≥120℃

1. Tank:
Material: Q345 Mild Steel no beam type
Shape: Round
Thickness of shell: 5mm
Thickness of dish : 6mm
Compartments: 1 compartments with inter baffles.

2. Tank top accessories:
Ladder, as the walkway, on the rear up to the tank top.

Tank equipment
Manhole: 2pcs carbon steel manhole covers 500MM with filling opening DN250
Pressure/vacuum valve.
Breath Valve: 2pcs DN60
Insulated Layer: 100mm thickness Fiberglass wool
Exterior Paneling: 0.5mm carbon steel
Discharge Valve: 1pc DN100
1 control panel

Discharge method
Gravity discharge
Running gear
FUWA 3×13T axles,double wheel.
Mechanical suspension leaf spring
2” kingpin
1pair landing legs
Tyre: 11.00R20 12PCS including 8.0-20 RIM 12PCS.

Braking system
Double line air brakes Mechanical parking brake with WABCO emergency relay valve.
WABCO ABS system
Electric installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction,fog, reverse lights, side lights
Painting
The chassis will be sand blasted before painting
One primer
Final painting

Accessories
PVC Mudguards
steel side protection
2 fire extinguishers carriers.
1 spare tyre carrier.
1 tool box with our factory's standard free tools

Thermometer: 0~300

Volumeter: Ball floating type

Model of Burner BTL20 BALTUR 1pc
Thermal power of burner (Kw) 83.02~260.9 200 thousand kcal.
Fuel injection quantity of burner 7.5~11.5

Model of the Engine KDE3500T KAMA
Power of the engine (Kw)
Diesel oil storage tank of burner 70
Model of electric control cabinet PLC-3

Bitumen Tanker Trailer and Asphalt Tanker Trailer for Sale

LANTYPC Purpose Vehicle is a professional manufacturer of bitumen tanker semi trailer in China. In addition to bitumen tanker semi trailer, we also have many other kinds of special vehicles for you, including low bed trailer, container flatbed trailer, container skeletal trailer, tipping trailer, van trailer, side wall trailer,fuel tanker trailer, bulk cement tanker trailer, combination vacuum jetter truck, vacuum suction truck, water jetting truck, and more. With ISO9001 and CCC certification, our products have been well received around the world, such as Saudi Arabia, UAE(United Arab Emirates), Tanzania, Kenya, Australia, New Zealand, Belgium, Bosnia and Herzegovina, Brazil, Cuba, Morocco, Algeria, etc. If you want bitumen tanker semi trailer, please contact us freely.
